Lubrication Pump Details

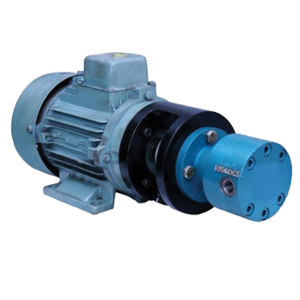

Lubrication Pump (Rotary Mini Pump) (Series - DRMP)

Apollo mechanical Industries is Manufacturer Of Small Size of Rotary Gear Pump Specially For Lubrication Purpose.

Apollo mechanical Industries is Supplier - Exporter of Lubrication Pump Under The Brand name Of "DURGA PUMPS" Series DRMP.

Apollo mechanical Industries is Manufacturer Of Small Size of Rotary Gear Pump Specially For Lubrication Purpose.

This pumps Are Available Of Two Types

1) Non - Reversible : In these Pumps Shaft Can Rotate Only As Per The Direction Shown By An Arrow On The Pumps. Suction & Pressure Port Are Indicated Accordingly .

2) Reversible : in These Pumps Shaft Can Rotate Either In Or Out Direction Suction And pressure Ports Are indicated Accordingly Minimum RPM of Shaft Required is 500.

Material of Constructions

PartMaterial For DRMP
BodyIS.210 FG 220 C.I. Grade
Back CoverIS.210 FG 220 C.I. Grade
ShaftEN-19
GearSintered Iron
Bush BearingNon Ferrous Sintered Bronze
SealingNeoprene oil Seal
Key for couplingEN-8

Technical Specification

ModelCapacity in LPM at 1440 RPMSuction & Delivery SizeMotor Rating Required [HP]
DRMP-0.50.51/8" x 1/8"0.25
DRMP-111/4" x 1/4"0.25
DRMP-331/4" x 1/4"0.25
DRMP-661/4" x 1/4"0.5
DRMP-10103/8" x 3/8"0.5
DRMP-16161/2" x 1/2"1.0
DRMP-25251/2" x 1/2"1.5
DRMP-40401" x 1"1.5

Application

  • Lubrication of gear boxes.
  • Head stocks.
  • Transfer of oil.
  • Low pressure hydraulic power packs..
  • Rotary oil fillers.
  • Automobile and Machine tools.
  • Heavy machineries and equipments.
